Arched top wrought iron french double front entry doors iron exterior entrance doors

Product Details



Material: Q235 steel
Size: 6'(W) x 16'(H) / customized
Door jamb: 2 3/8" x 6", 11gauge(60x150x3mm) rectangular tube
Door leaf: 2 3/8" x 4 3/4", 14gauge(60x120x2mm) rectangular tube
Scrolls: 9/16" x 9/16"(14x14mm) solid square bar
Glass: 5+12+5mm insulated double pane tempered mirror glass
Color:  black  + gold / brushed copper + gold  / customized

Other Specifications can be achieved according to customer's requirements.

Product Name
Arched Top Wrought Iron French Entry Door
Material
Wrought Iron Q235 Steel
Color
Black, Brushed Copper, or Customized
Size
Cutomized
Features
Doors are insulated with a polyurethane foam core that will add rust resistance and noise reduction; Energy Efficient Insulated Dual Pane Glass; Independent Operable Glass for Ventilation and Easy Cleaning.
Surface Finishing
Pickling & Phosphating--Sand Blasting--Anti-rust Primer Dipping--Enamel Painting / Powder Coating / HDG(hot dipped galvanized)
Accessaries
Flush bolt and glass latches will be assembled before shipment.

Polyurethane foam filled inside door jamb, door panels and threshold to provide sound & heat insulation.

Heavy duty rubber striping around jamb, door panels and glass frames to prevent rain and winds coming.

Handles and lock is up to your option, standard lock hole will be drilled.
Advantages
Sound Proof / Water Resistance / Wind Resistance / Heat Insulation
Prehung & Test
Pre Install Before Shipment for Better Function
Packaging
Bubble Film + Blanket + Wooden Case

Products Show

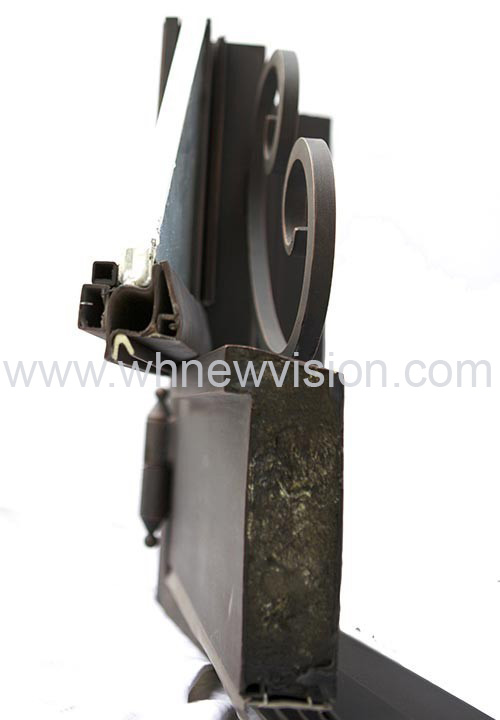

Go Green! Polyurethane Foam is an Incredible Insulator.

Our quality iron doors are insulated with a polyurethane  foam core that will add rust resistance and noise reduction. Our polyurethanefoam doors will help you build your dream energy efficient home.

Energy Efficient Insulated Dual Pane Glass.

Our energy efficient doors are built to avoid air leakage    for air conditioning in the summertime and heat in the   winter. At New Vision, we don't cut corners even when it comes to sustainability. We choose the best door glass   available so that most of the sun's energy that reaches   the glass will either be reflected back to the environment, or absorbed with our Low-E glass.

Very Tight Weather Stripping That Significantly

Reduces Air Infiltration And Water Penetration.

The dual sealing around the door glass allows for weather stripping on both sides of the glass. The tight seal around the door frame reduces the leakage of air and heat,     resulting in a much more energy efficient product for our customers.

Operable Glass Panels.

All of our iron doors come with operable and individually hinged insulated dual pane tempered glass panels that   can open independently from the doors for ventilation,    security and convenient cleaning.

One of a Kind Custom Paint Finishes!

New Vision Iron Doors exclusive 5-step coating system    includes pickling & phosphating after welding to remove stains & rust on metal surface, sand blasting all our iron doors to take all of the rough spots down to bare metal, multiple quality primer & enamel coating applications to  insure that our customers get this best paint finish possible, and excellent custom paint finishes that promises lasting beauty and durability.

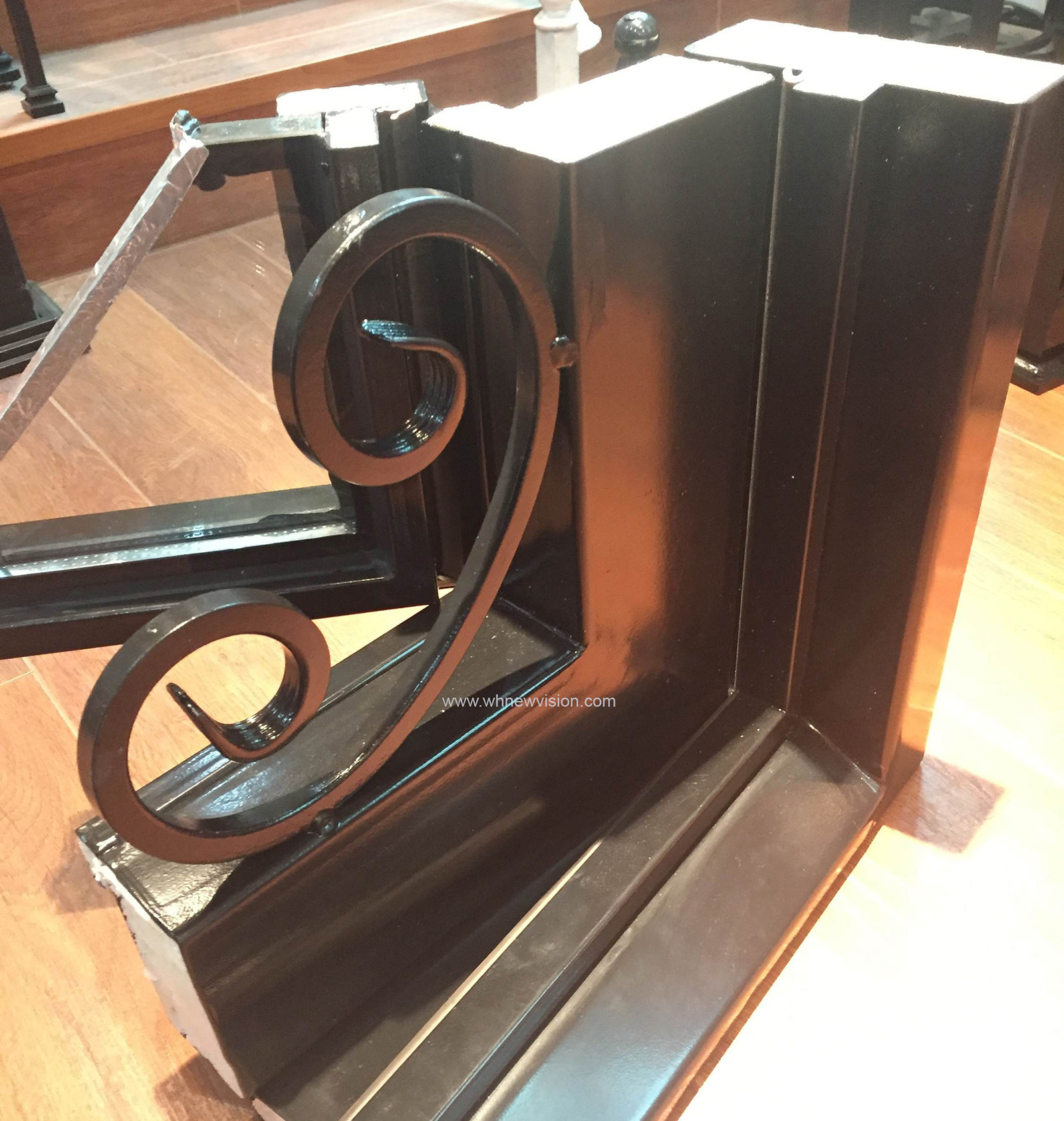

Quality Thresholds.

At New Vision, we take sustainability seriously. Our door threshold helps keep the door square in the opening and provides greater protection against water infiltration.

It's As Simple As It Sounds.

At New Vision, we are not only committed to provide the best quality product. We're also fully dedicated to create an ordering process that is simple, stress-free and enjoyable every step of the way. Our role does not only include selling high quality iron doors. We're also here to give our customers a hand when it comes to the information they need to order their luxury iron doors, including measurements and pre drilled holes to make the door installation process as easy as possible.

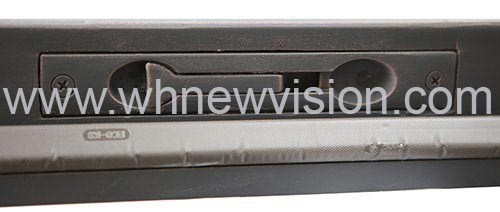

Flush Bolt System.

All our wrought iron double entry doors include quality    pre-installed flush bolt system on the top and the bottom that locks in dormant door. This allows customers to use one side of the double door on daily basis and the option to unlock the other side door for greater opening space.

Powerful New Vision Hinges.

New Vision Iron doors uses heavy duty grease filled hinges. The hinges come with copper washers to allow customers to comfortably open New Vision Iron Doors.



Our Service

Design.

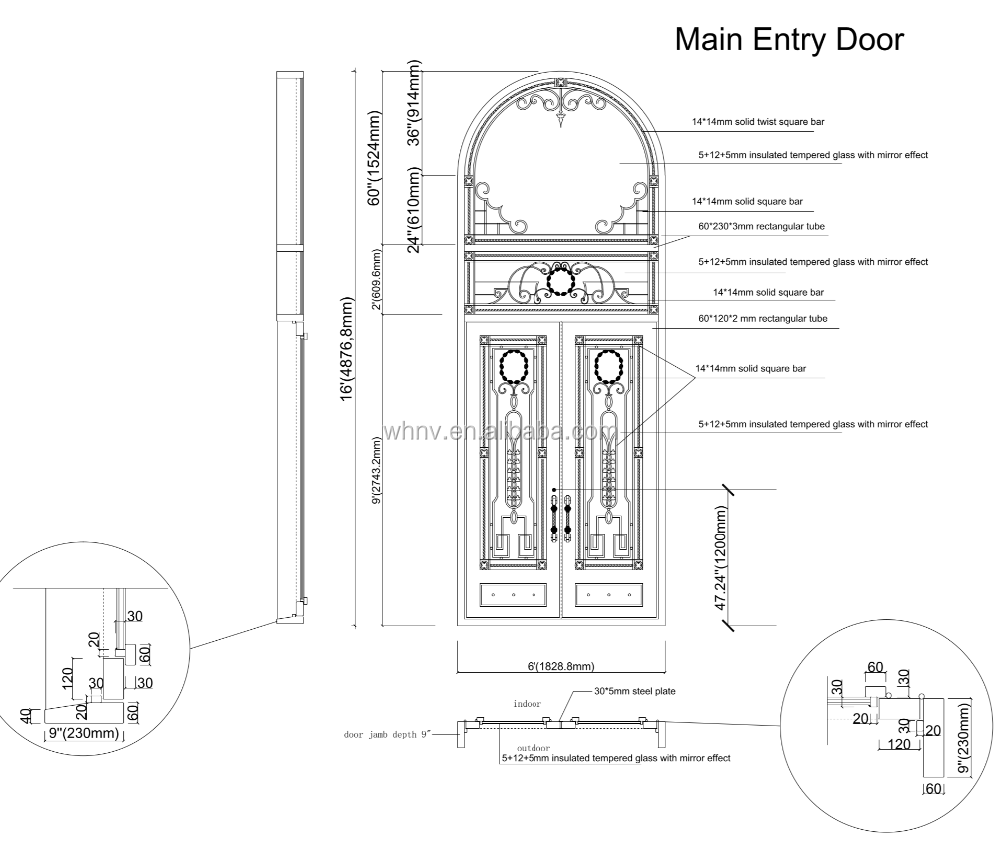

We will design your project according to your doorway dimensions for accurate and scaled finished drawings for your approval. This ensures you receive the exact design, proportions, and size you want and expect.

Warranty

5 years warranty on parts and finishing, 1 year warranty on glass.

Our Company

About Us

Founded in 1999, we're a professional ironwork manufacturer that specializes in designing and manufacturing high quality iron stair/balcony/terrace railings, wrought iron gates & fence panels, wrought iron entry doors, steel staircases, iron windows grills, iron gazebos and more.

"High quality is our obligation, and great service is our mission"--this is always our guiding principle. Our plant works on everything with strict quality controls from the raw materials to the finished products to ensure that our quality products arrive to customers unblemished. The beautiful design and enduring quality have been acclaimed by our customers, both home and abroad.





Factory  Our Factory





Workshop  Our Workshop





Our Equipment  Metal Sheet Bending Machine





Our Equipment  CNC Steel tube & bar cutting





Our Equipment  CNC Steel tube & bar cutting





Our Equipment  Plate Cutting & Hole Punching






Our Equipment  CNC Plasma Cutting Machine





Our Equipment  CNC Laser Cut Machine







Our Workshop  Welding





Our Workshop  Grinding







Our Workshop  Pickling & Phosphating Finishing





Our Workshop  Sand Blasting



Our Workshop  Rust-proof Primer Dipping



Our Workshop  Powder Coating

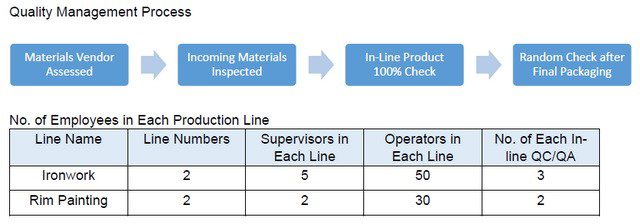

Quality Control



Why Choose Us



1. Genuine Manufacturer

2. R&D Capability

3. Strict Quality Control & Quick Delivery

4. Professional Service Team

5. OEM/ODM Service Available

6. Total project solution & one-stop shopping experience

FAQ



Q: Are you trading company or manufacturer ?

A: We are both manufacturer and trading company, we have a self-owned factory for metal products and a trading company for other building materials such as granites, marbles, glasses, etc.



Q: How long is your delivery time?

A: Generally it's 20-30 days after confirming drawing & receiving deposit, depending on the quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=USD5000, 100% T/T in advance. Payment>USD5000, 50% T/T in advance and balance before shipping; or pay through Alibaba Trade Assurance.
